Hi all I am putting in a car head unit for my 1990 ford lazer however when I went to pull out the old radio all of the factory connections have been cut off for the old radio and when I took off all the old stuff I am left with a bunch of wire that I don’t know where they go or how to connect the new stuff to it I have try to look all over online but their is nothing I can find so it be so much help if some can say something

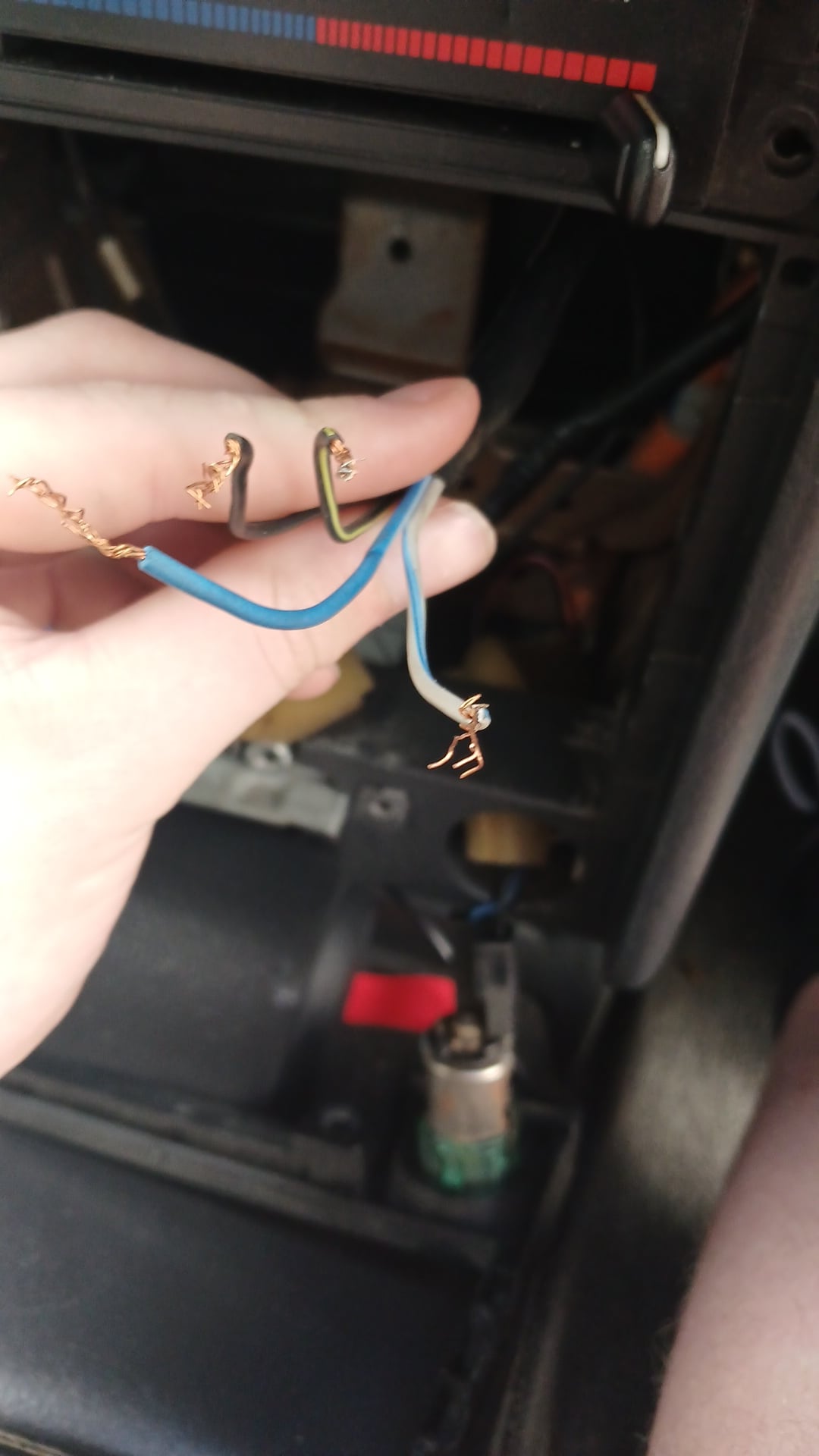

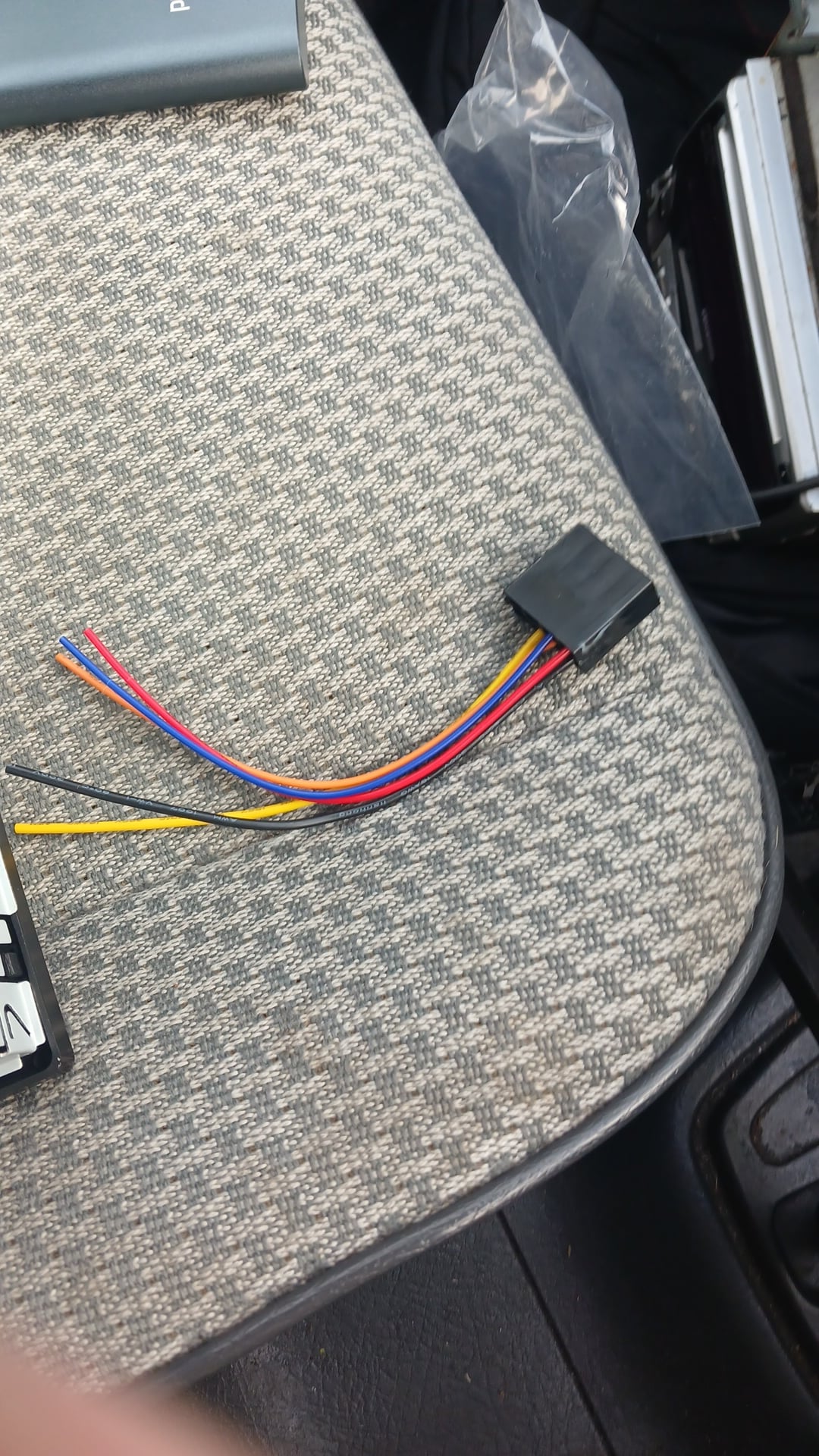

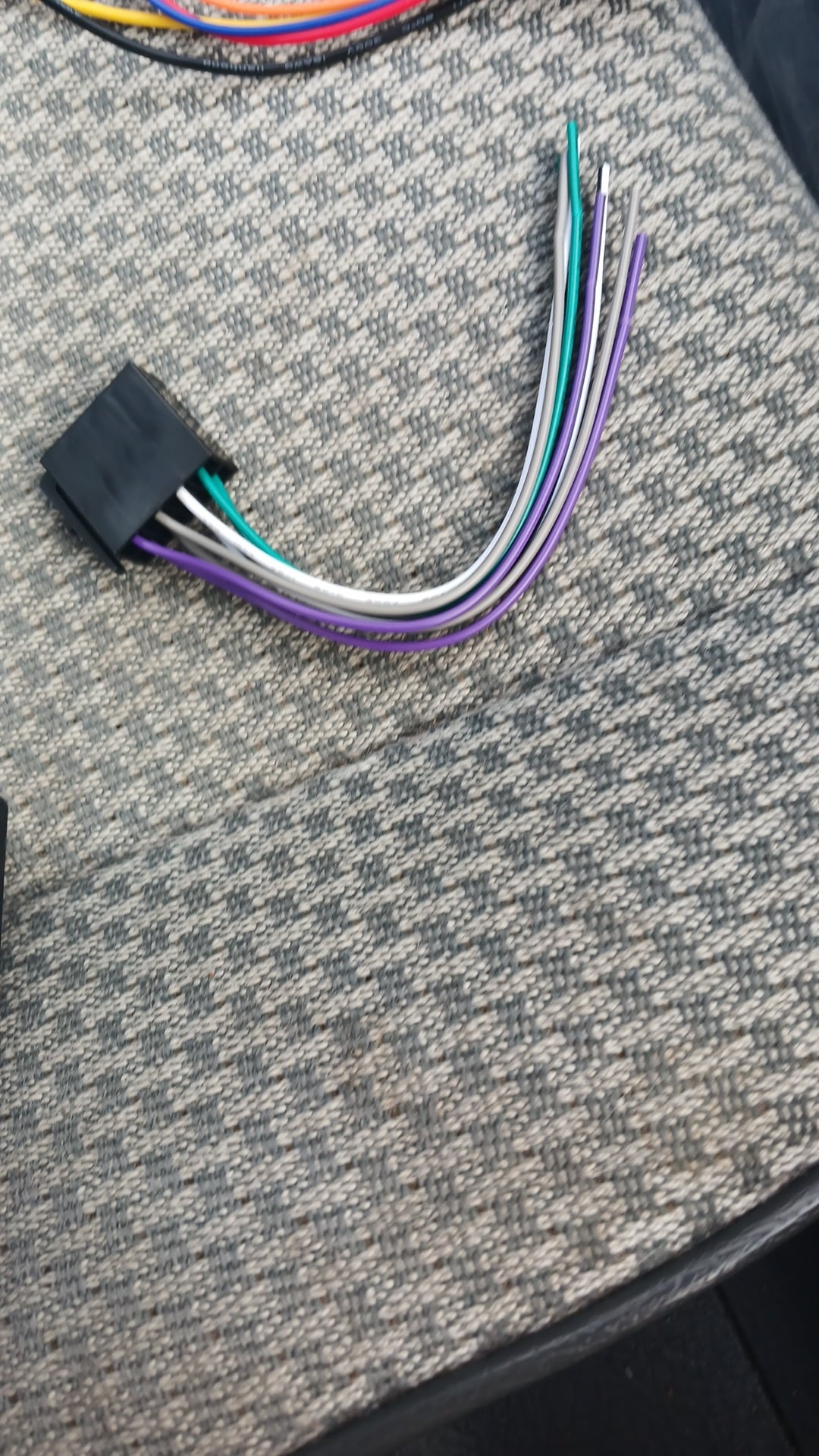

Here is are some photo of the wiring and plug I need to connect it to p.s I am aware that u will have to solder them I just need to know the wiring diagram and how it will go together
by sonee2007
![is this a real [porsche 959] at this body shop?](https://www.evshift.com/wp-content/uploads/2024/05/a9efwx50k21d1-770x515.jpg "is this a real [porsche 959] at this body shop?")
1 Comment
So with some quick searching it seems that the laser is just a renamed escort for the 1990 year (Wikipedia). You will probably find more info if you search ford escort. So your two options are 1) find a wiring diagram for the radio of a 90 escort/laser and it will tell you what color wire does what (power, ground, remote, front speaker, rear speaker, etc) and then you can match to the wire from your radios harness that have the same function.
The second option is fixing what the previous owner fucked up as you never should cut off the factory radio harness unless nobody makes a wiring harness for your car (and even then there’s other ways to go about it that are better then that). You can buy a harness that will give you the factory plug back (http://www.metraonline.com/vfgapi/vehicle/18334? The harness that goes into the factory radio is what you would need here), and that will give you back the factory plug, then the vehicle specific wiring harness for installing a radio (radio harness into car on that page) will wire into the harness from the radio you want to install, and wiring those together is just matching colors the vast majority of time.
